Air impact wrench, 1" drive (25mm), 3800Nm
Product code: BGS-7640
Brand: BGS
Product description

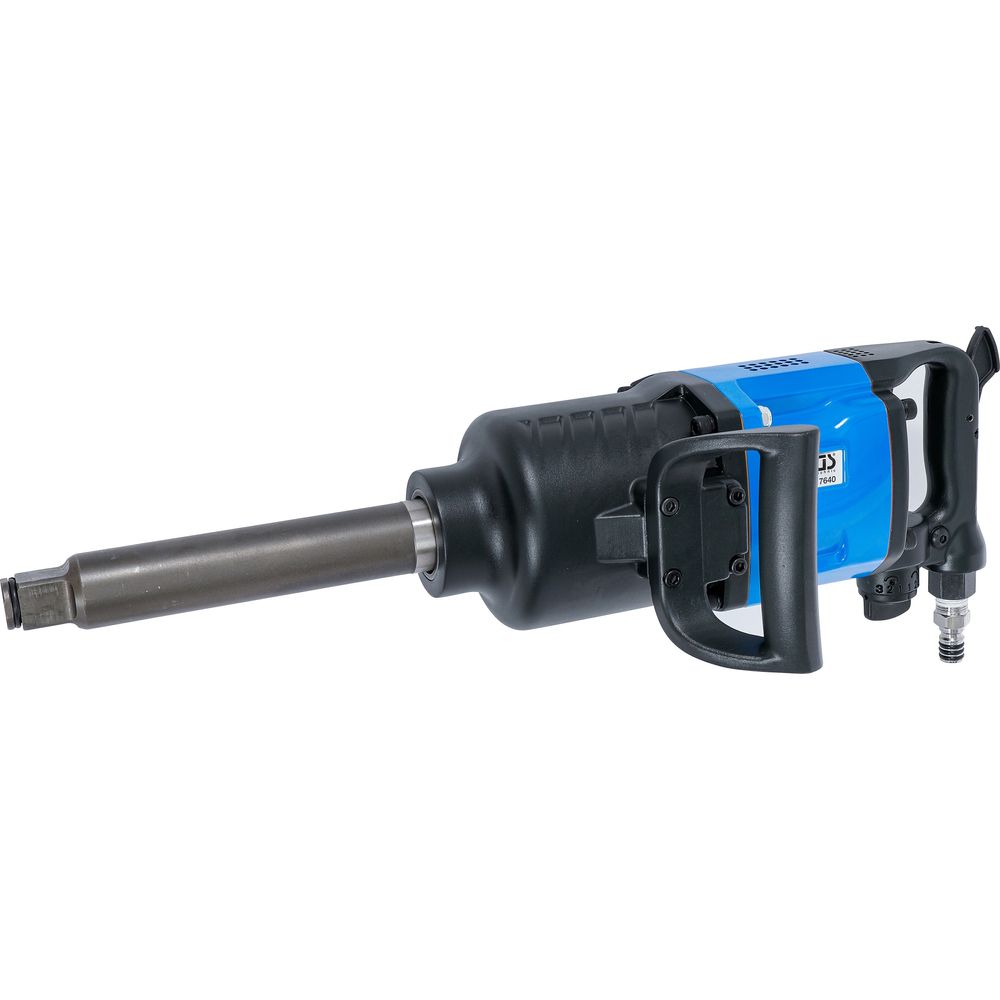

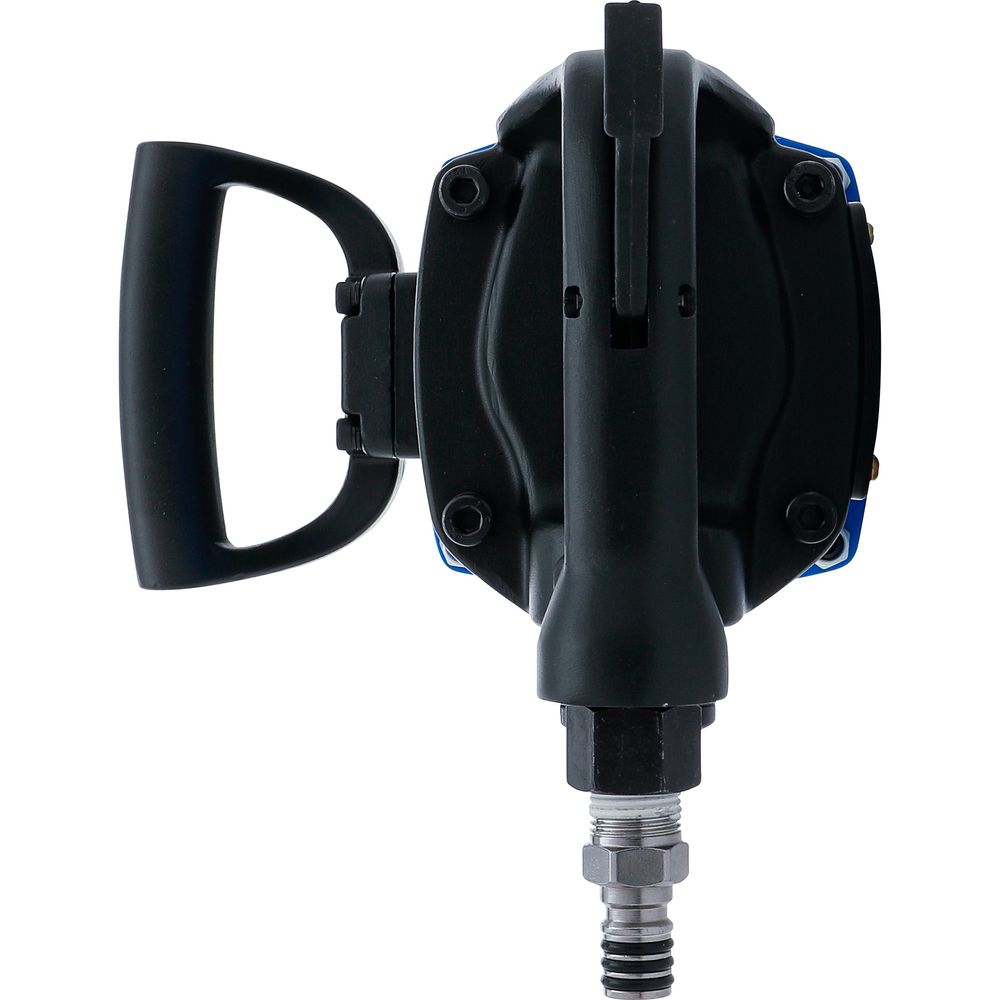

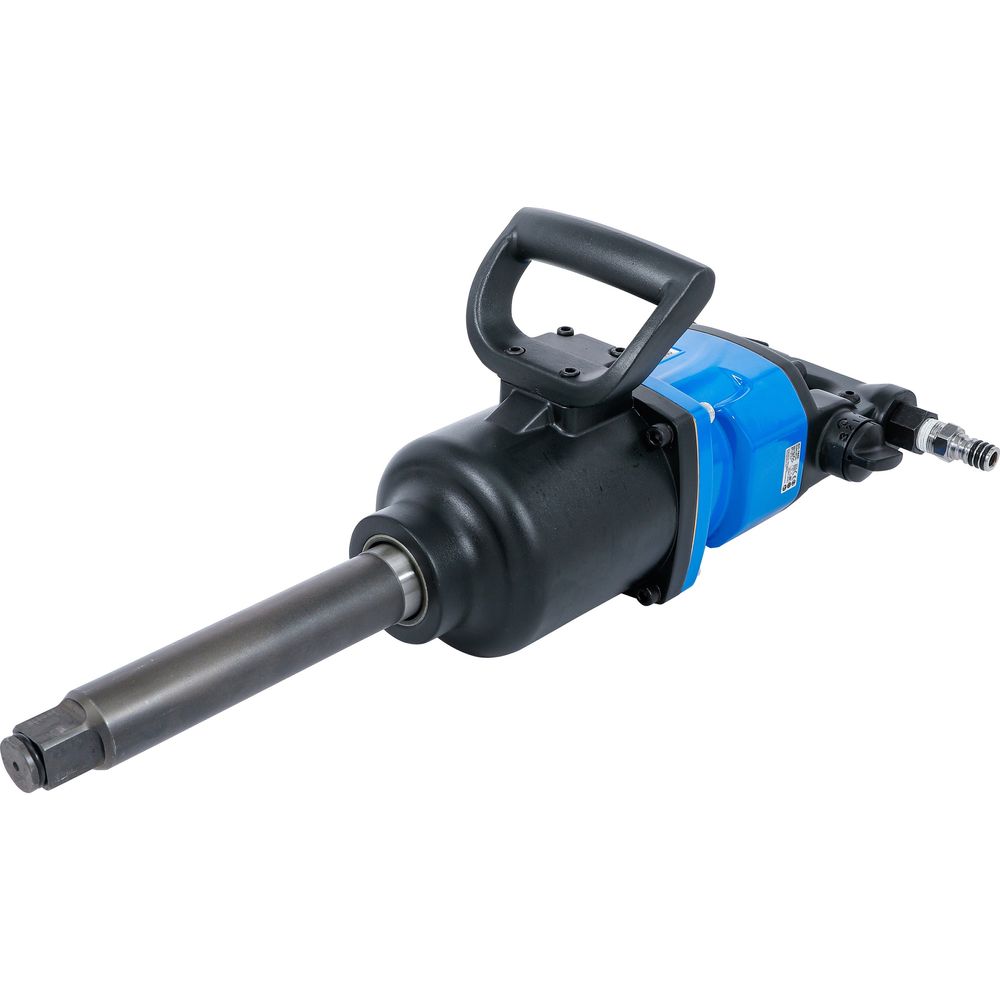

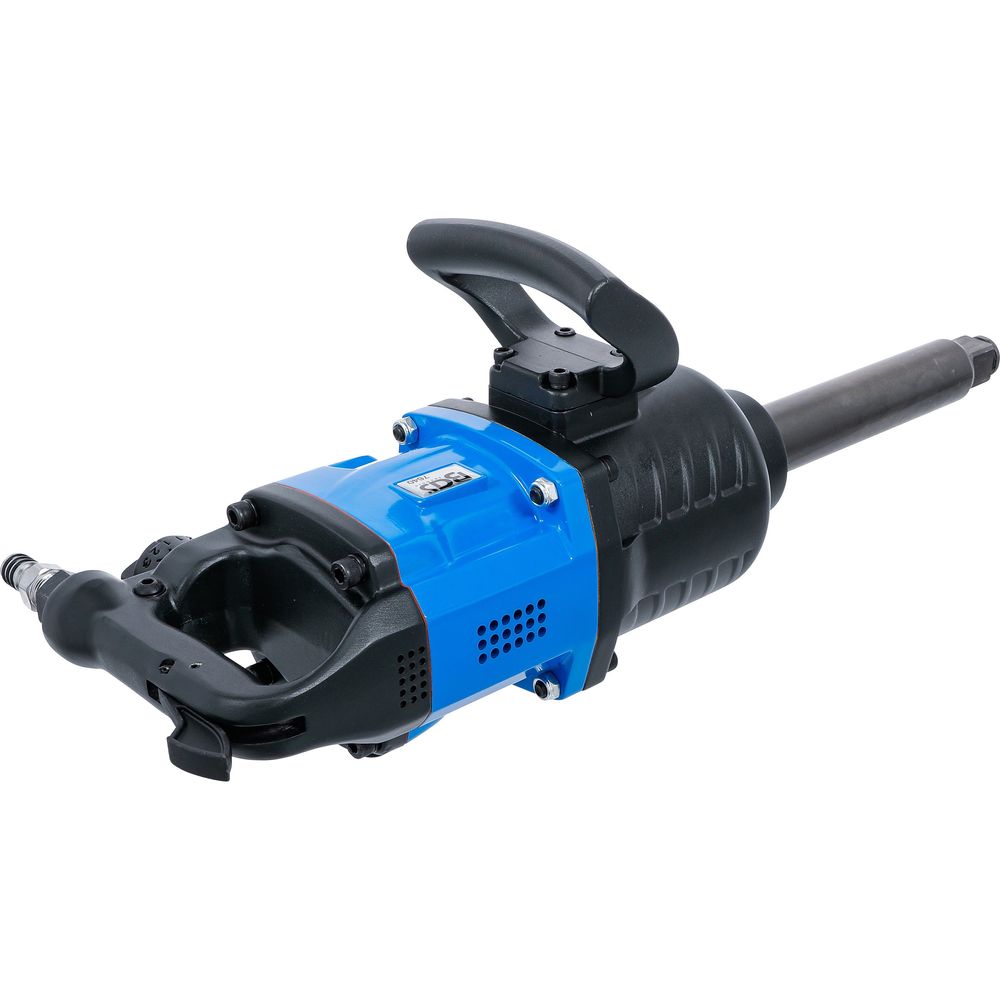

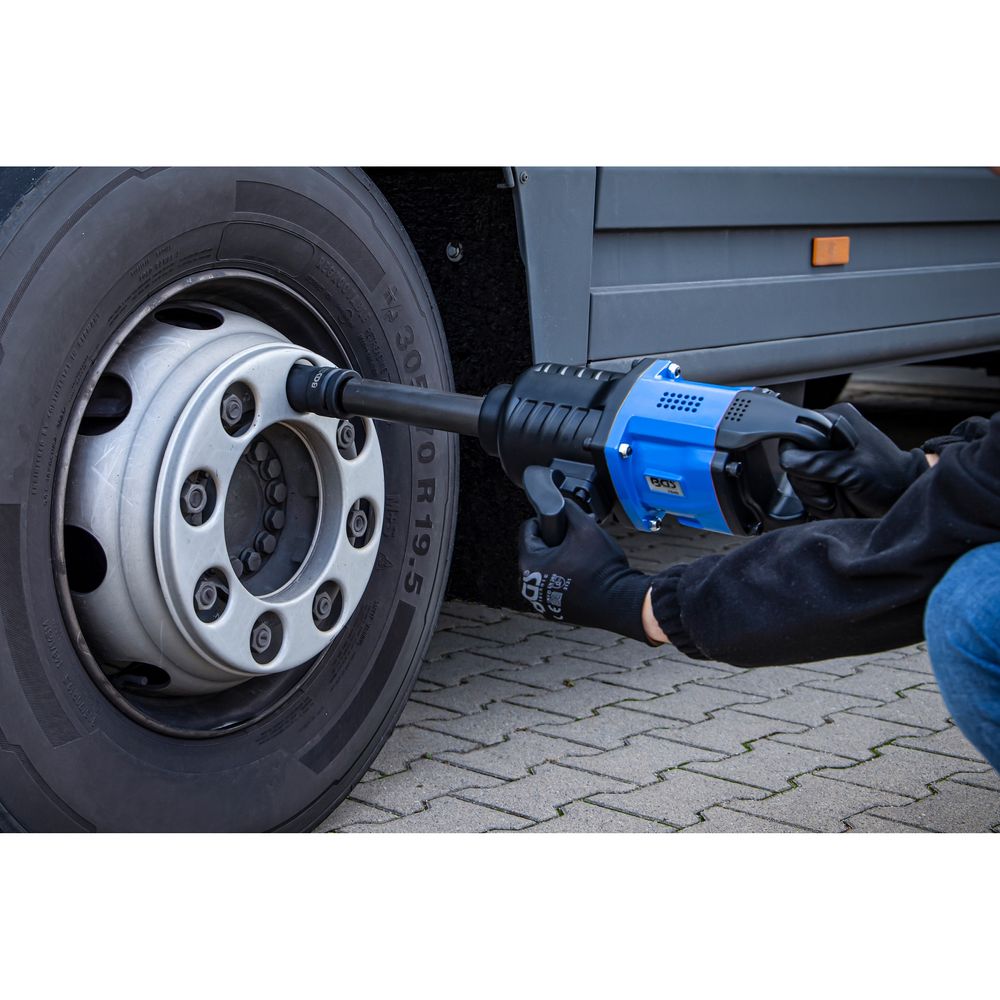

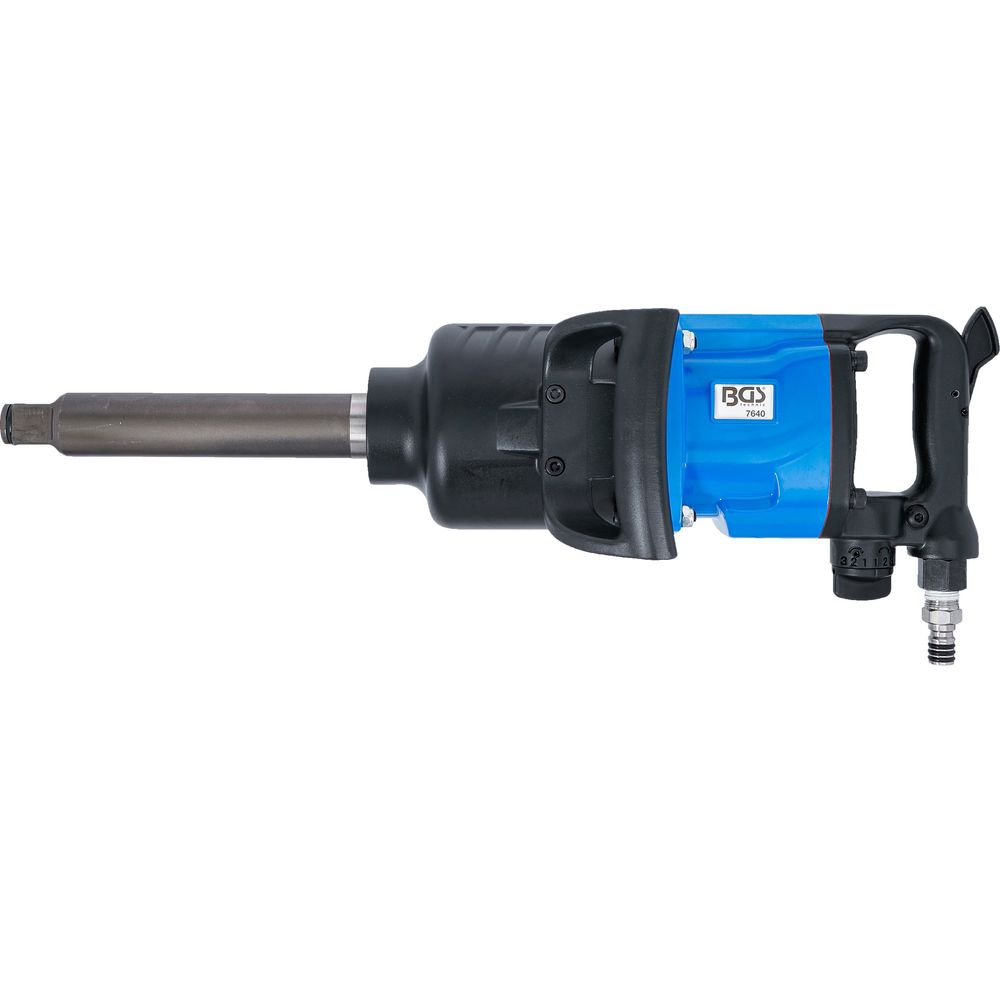

This 1" air impact wrench delivers extreme performance with up to 3800 Nm torque, making it perfect for industrial and commercial vehicle applications. Built with a durable heavy-duty housing, it is ideal for high-load environments such as truck and bus maintenance.
It features a pinless hammer mechanism for efficient energy transfer, and a rotating switch for easy direction change. The 3-stage torque setting is available in both clockwise and counterclockwise directions, allowing precise control. An additional side handle ensures secure and stable handling during intensive use.
With a total length of 590 mm, the tool offers good leverage and reach. It operates at 6.2 bar, consumes 1140 l/min of air, and uses a 1/2" air connection with a recommended 15.8 mm inner hose diameter. Despite its power, the tool includes vibration control and sound optimization for safer operation.
Technical data table
| Specification | Value |
|---|---|
| Drive size | 1" (25mm) external square |
| Max. torque (counterclockwise) | 3800Nm |
| Max. torque (clockwise) | 3100Nm |
| Max. drive speed | 12000rpm |
| Operating pressure | 6.2bar |
| Air consumption | 1140l/min |
| Air connection | 1/2" |
| Recommended hose inner diameter | 15.8mm |
| Total length | 590mm |
| Gross weight | 18455g |
| Sound pressure level (LpA) | 97.7dB(A) |
| Sound power level (LwA) | 108.7dB(A) |
| Vibration level (ahd) | 10.48m/s² |
| Vibration uncertainty (K) | 1.53m/s² |
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 67.9 x 19.4 x 24.1 cm | 18.46 kg |
