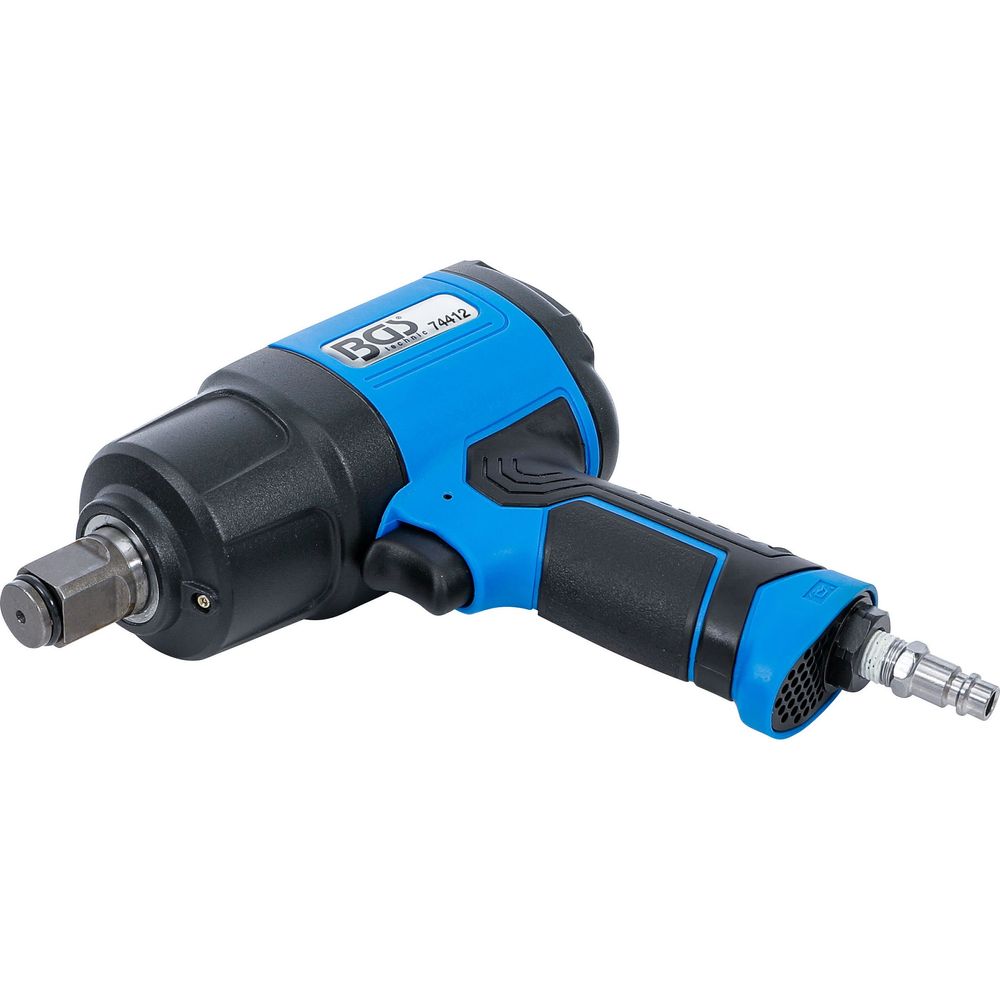

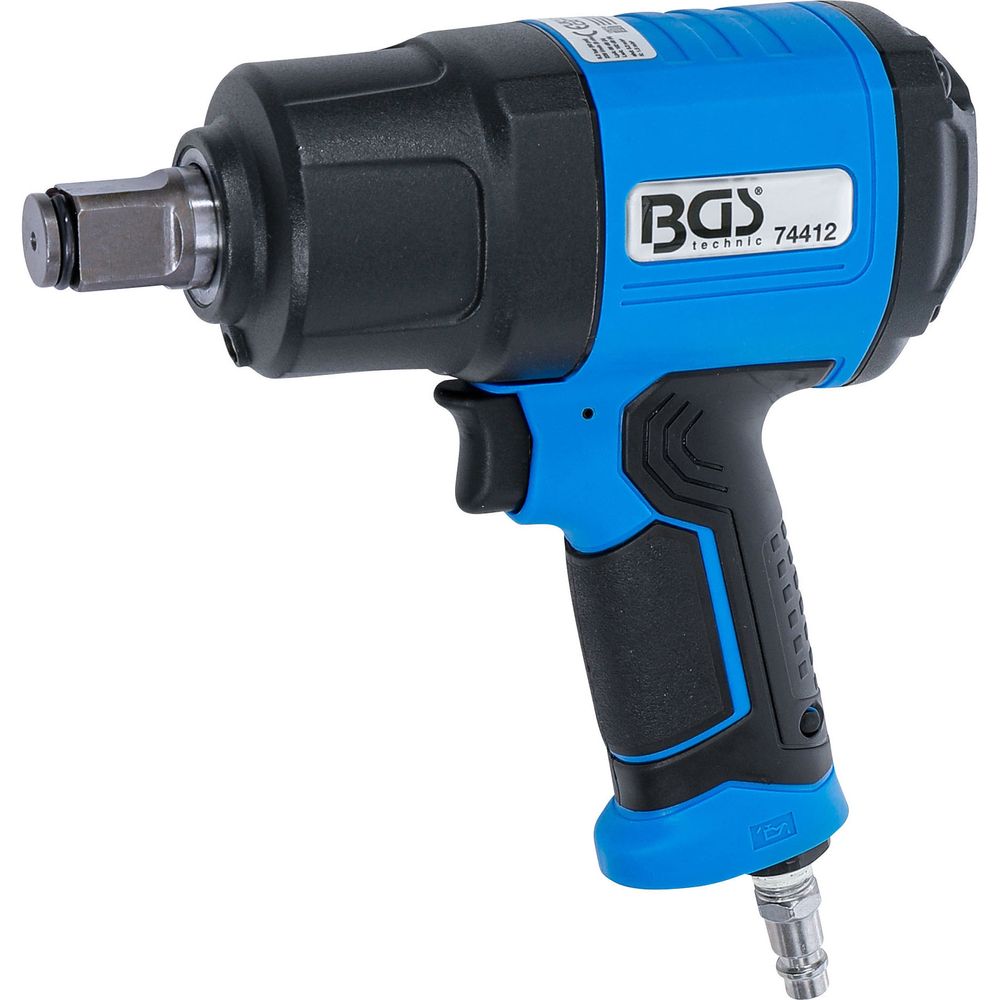

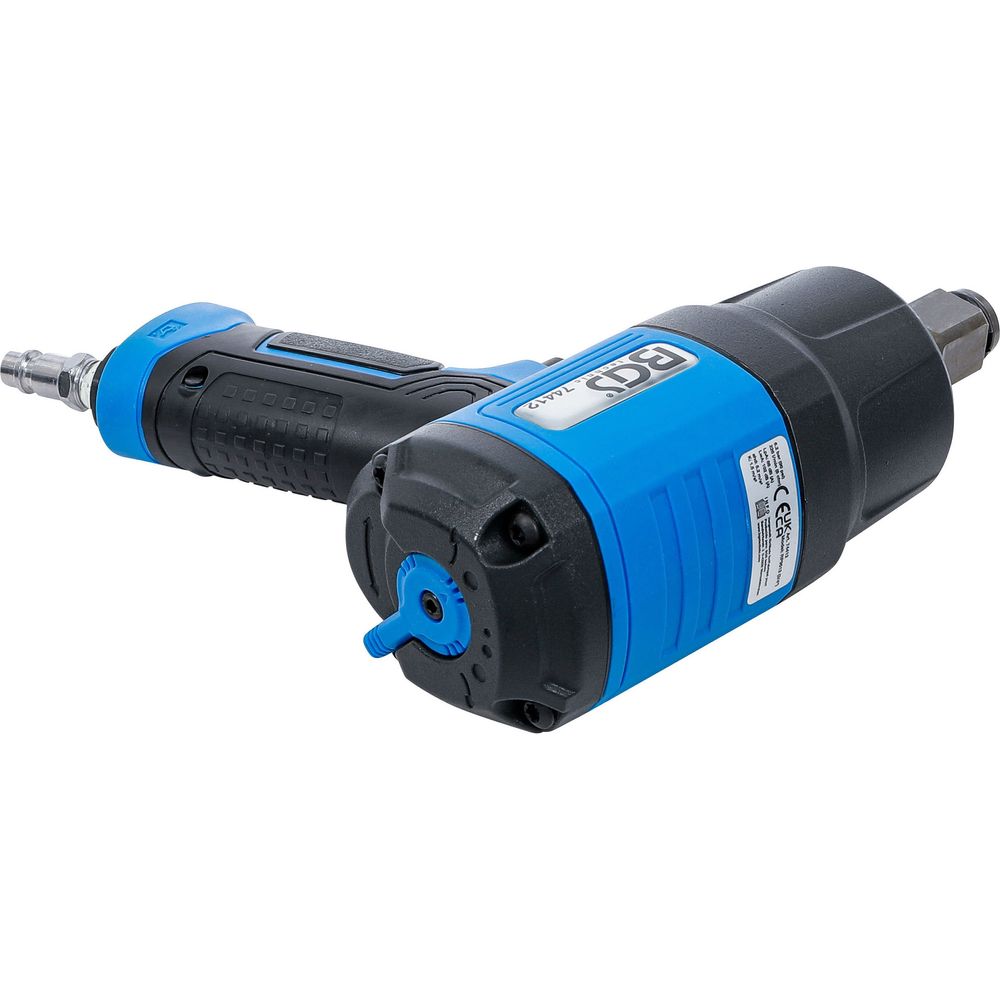

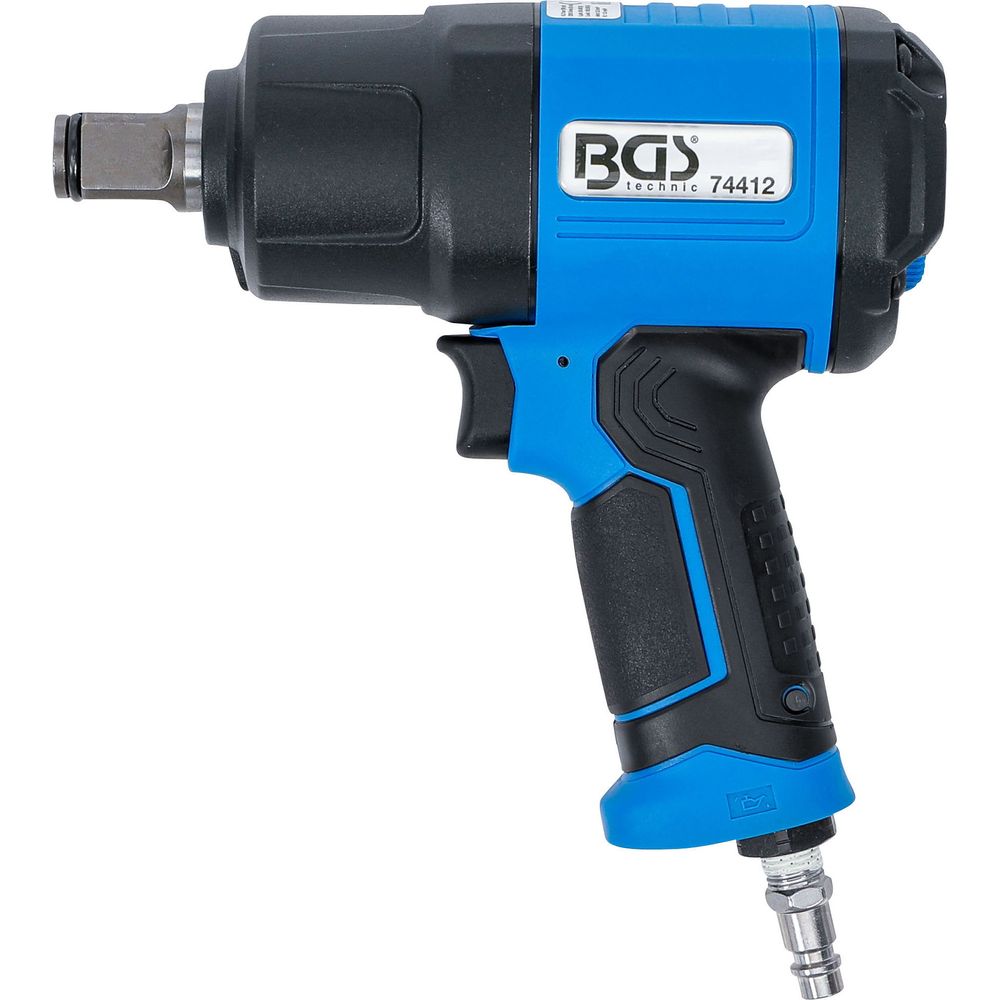

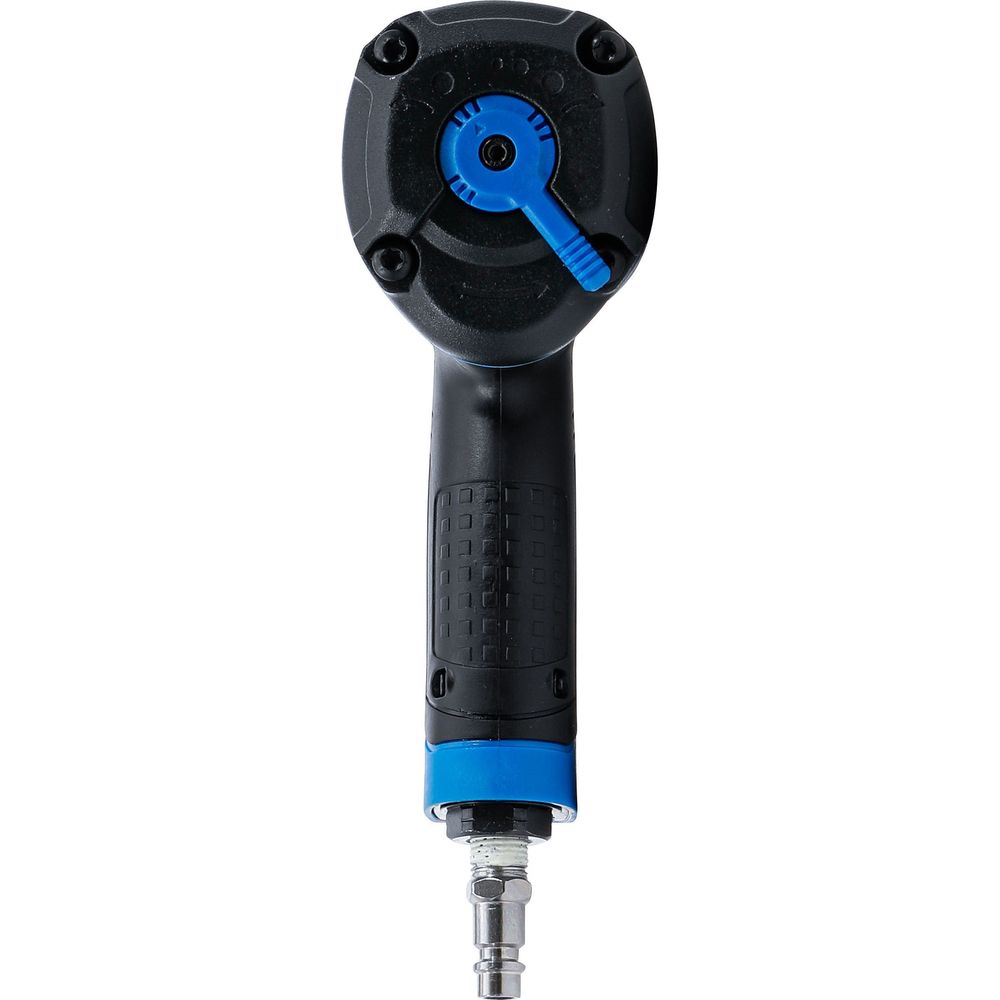

Air impact wrench, 3/4" drive (20 mm), 1650 Nm
Product code: BGS-74412
Brand: BGS
Product description
This compact yet high-powered air impact wrench with 3/4" (20 mm) drive is engineered for heavy-duty use in workshops and industrial settings. It features a high-performance double hammer mechanism, delivering up to 1650 Nm of loosening torque for even the most stubborn bolts.
Equipped with a practical direction switch lever, the tool allows easy left/right rotation, with 3-step torque adjustment in clockwise mode for controlled fastening. The non-slip, ergonomic grip and well-balanced housing improve handling and reduce operator fatigue.
The exhaust air is directed downward through the handle for comfort and efficiency, while the vibration-reducing design keeps vibration at 5.2 m/s² (K = 1.5 m/s²). Operates at 6.2 bar, with 226 l/min air consumption, and includes a 1/4" air connection with a recommended 10 mm hose diameter.
Specifications
| Specification | Value |
|---|---|
| Drive size | 3/4" (20 mm) external square |
| Max. loosening torque (counterclockwise) | 1650 Nm |
| Max. loosening torque (clockwise) | 1150 Nm |
| Max. operating torque | 850 Nm |
| Max. drive speed | 8000 rpm |
| Air consumption | 226 l/min |
| Operating pressure | 6.2 bar |
| Air connection | 1/4" |
| Recommended hose inner diameter | 10 mm |
| Sound pressure level (LpA) | 88 dB(A) |
| Sound power level (LwA) | 102 dB(A) |
| Vibration level (ahd) | 5.2 m/s² |
| Vibration uncertainty (K) | 1.5 m/s² |
Overview
This compact yet high-powered air impact wrench with 3/4" (20 mm) drive is engineered for heavy-duty use in workshops and industrial settings. It features a high-performance double hammer mechanism, delivering up to 1650 Nm of loosening torque for even the most stubborn bolts.
Equipped with a practical direction switch lever, the tool allows easy left/right rotation, with 3-step torque adjustment in clockwise mode for controlled fastening. The non-slip, ergonomic grip and well-balanced housing improve handling and reduce operator fatigue.
The exhaust air is directed downward through the handle for comfort and efficiency, while the vibration-reducing design keeps vibration at 5.2 m/s² (K = 1.5 m/s²). Operates at 6.2 bar, with 226 l/min air consumption, and includes a 1/4" air connection with a recommended 10 mm hose diameter.
Specifications
| Specification | Value |
|---|---|
| Drive size | 3/4" (20 mm) external square |
| Max. loosening torque (counterclockwise) | 1650 Nm |
| Max. loosening torque (clockwise) | 1150 Nm |
| Max. operating torque | 850 Nm |
| Max. drive speed | 8000 rpm |
| Air consumption | 226 l/min |
| Operating pressure | 6.2 bar |
| Air connection | 1/4" |
| Recommended hose inner diameter | 10 mm |
| Sound pressure level (LpA) | 88 dB(A) |
| Sound power level (LwA) | 102 dB(A) |
| Vibration level (ahd) | 5.2 m/s² |
| Vibration uncertainty (K) | 1.5 m/s² |
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 21.5 x 20.3 x 7.9 cm | 2.58 kg |
